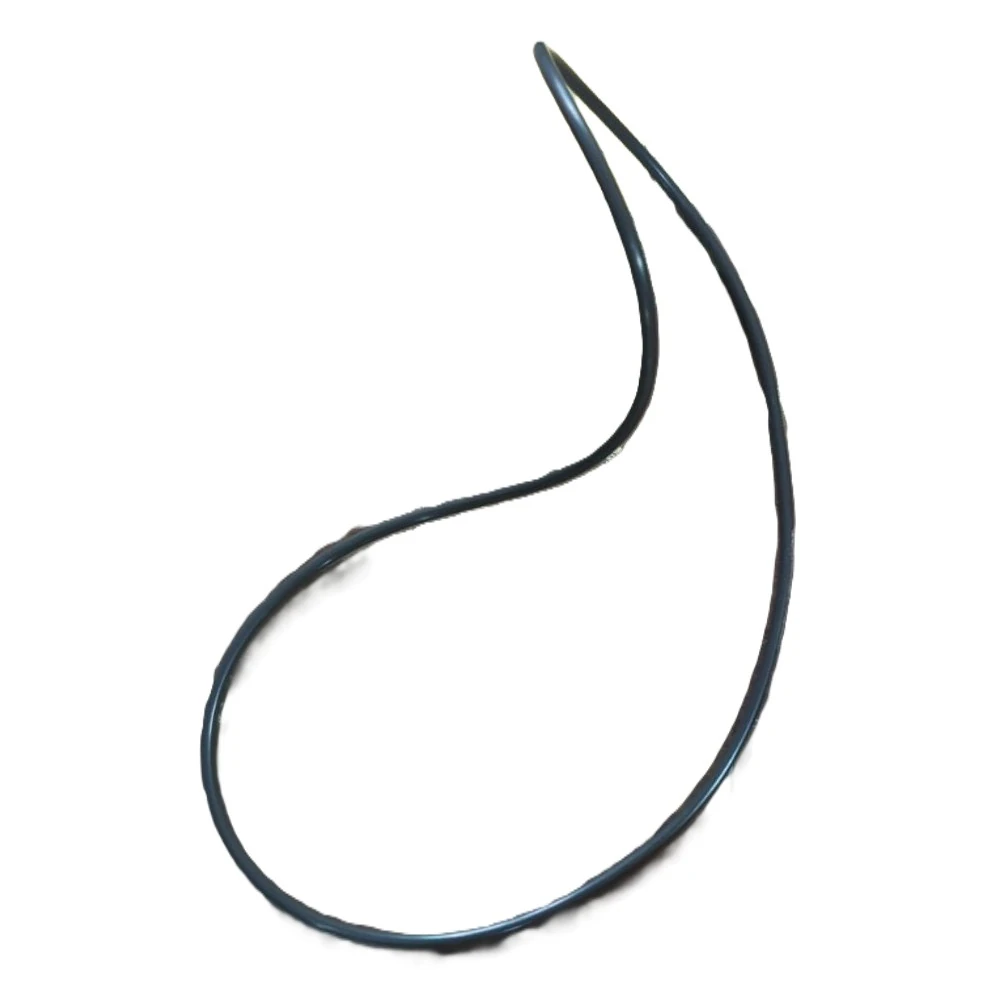

Carraro Genuine 415099 Brake O-Ring “ 209.14 × 3.53 mm, 90 Shore FKM

The Carraro Genuine 415099 Brake O-Ring is a heavy-duty sealing element engineered for high-pressure brake piston applications in Carraro rear axles. Manufactured from 90 Shore A FKM (Viton) material, this O-ring provides enhanced resistance to extrusion, deformation and pressure spikes encountered during intensive braking operations.

With dimensions of 209.14 mm ID × 3.53 mm cross-section, the O-ring ensures precise OEM fitment and reliable sealing. The higher hardness FKM compound makes it especially suitable for severe-duty environments where long service life and pressure stability are critical.

Replacing worn or incorrect O-rings with a genuine Carraro 415099 seal helps prevent brake oil leakage, pressure loss and premature brake system failure.

Technical Specifications

• Carraro Part Number: 415099
• Type: Brake Piston O-Ring
• Size: 209.14 mm × 3.53 mm
• Material: FKM (Viton)
• Hardness: 90 Shore A

• Application: Carraro rear axle brake assembly



Cross Reference / Interchange Part Numbers

Same interchange as 190493A1, including:

• 190493A1 – CNH / Argo Group
• 200183427400 – ACE
• S7601570640 – Escorts
• 0604AAB00171N – Mahindra
• 6193402M1 – Manitou / Mecalac / Terex
• 2246081 / 224-6081 – Caterpillar
• AC1337570000 – ACE
• TE31916 – Tata
• RJ90-02-248 – SEC-RJMT
• 7393995 – Doosan
• 2005230 / 2010587 – Bull
• 219000500 – Randon
• 5371000166 – Yanmar Compact
• 7000115 – Hydrema
• 852041340 – Dressta / Liugong
• C77AK43 – Cukurova
• CA0133757 – Komatsu
• PP9161078 – Terex
• S0642270 – Hidromek
• VOE11709338 – Volvo

Applications

• Carraro rear axle wet brake systems
• High-pressure brake piston sealing
