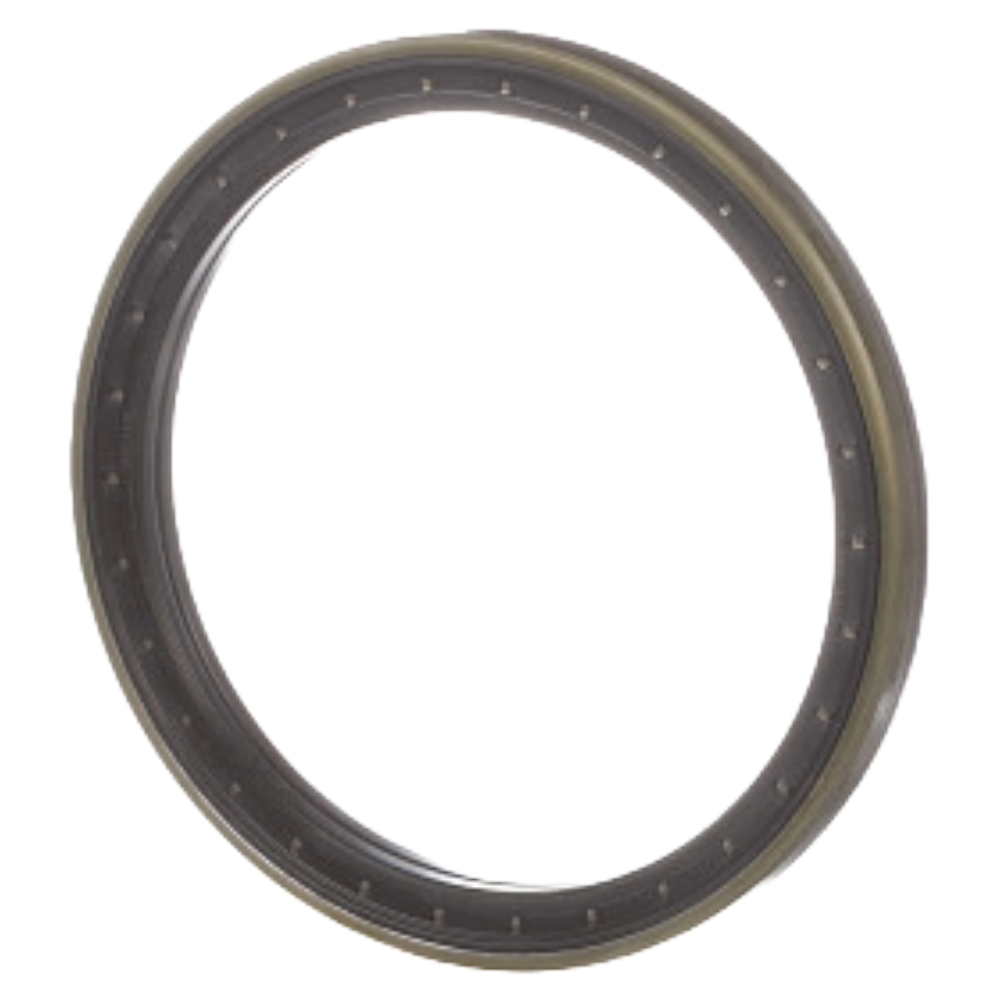

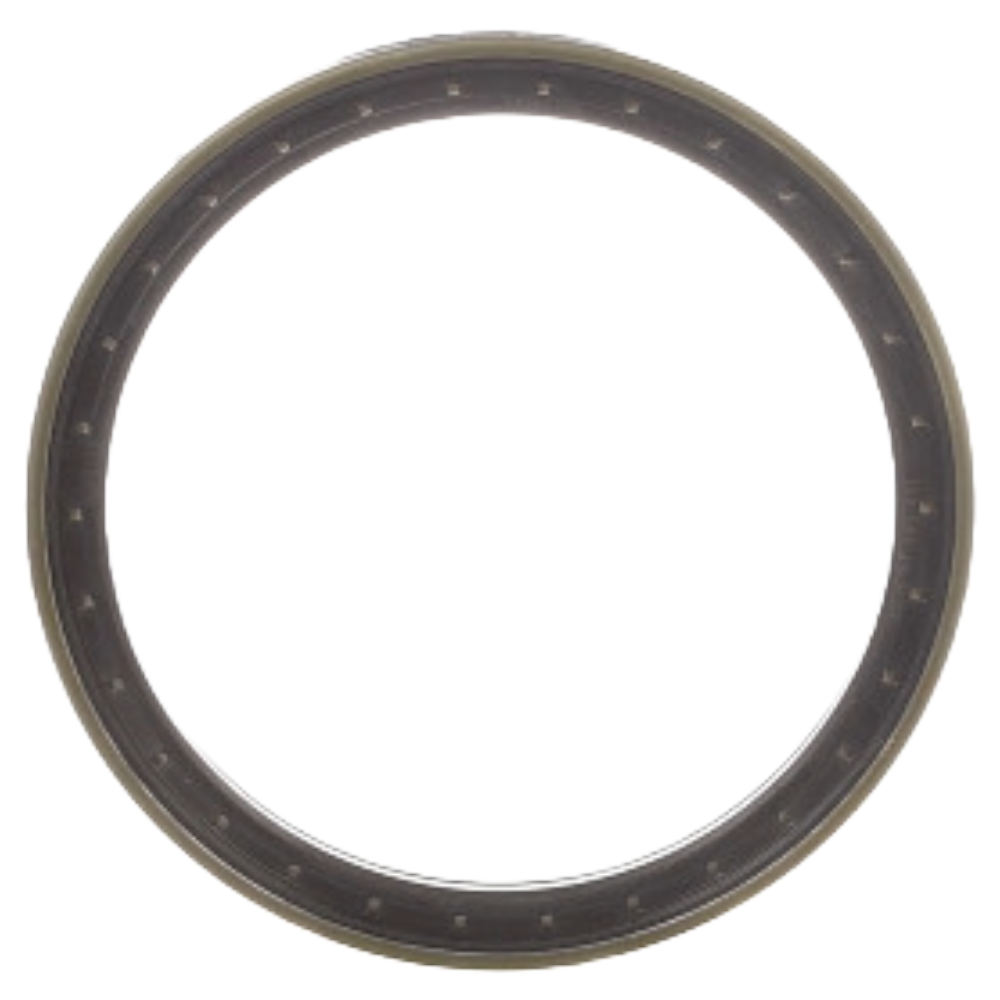

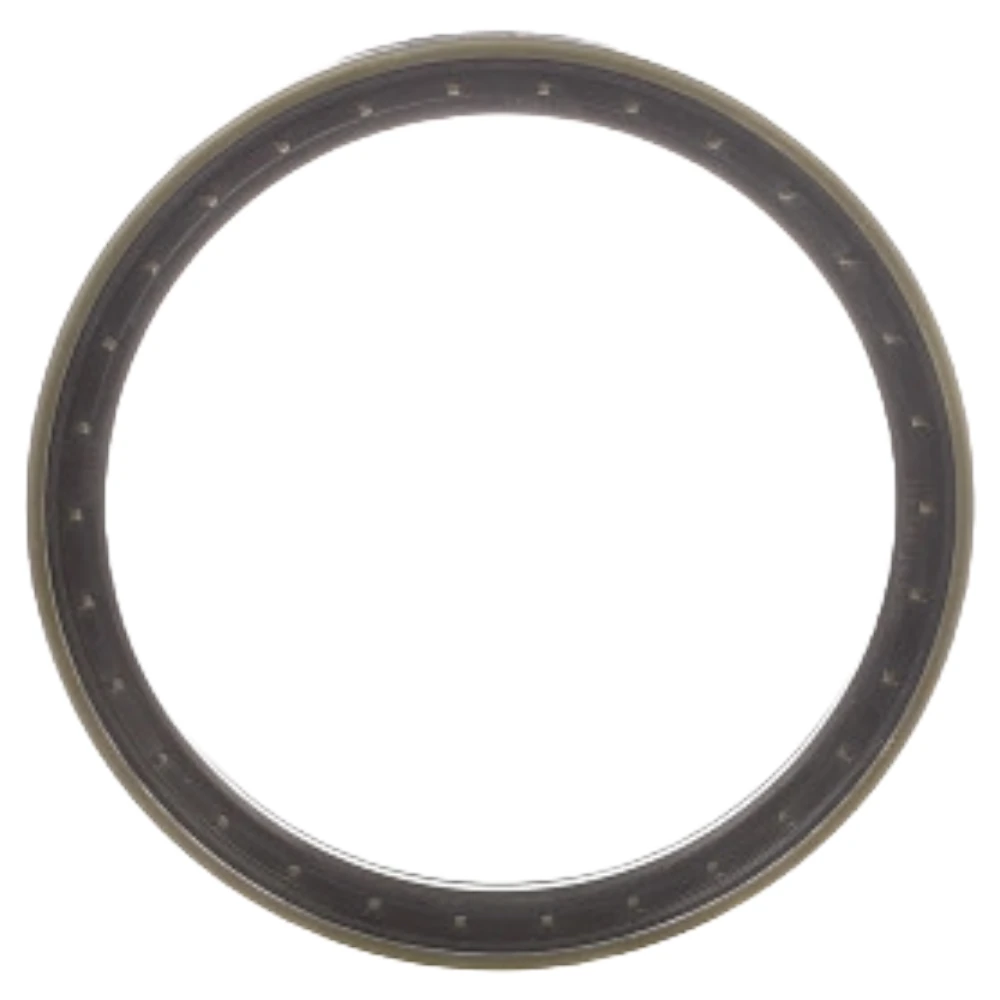

Case Construction Genuine 87349641 Cassette Radial Shaft Seal “ 150 mm ID × 180 mm OD × 14.5 / 16 mm Thickness

The Case Construction Genuine 87349641 Cassette Radial Shaft Seal is a high-performance OEM sealing solution engineered for demanding construction and industrial applications. This seal features a cassette-type design, which integrates multiple sealing lips and a reinforced housing to provide exceptional protection against contaminants while maintaining optimal lubrication retention.

With dimensions of 150 mm ID × 180 mm OD × 14.5 / 16 mm thickness, this seal is specifically designed to handle heavy loads, shaft misalignment, vibration and harsh operating conditions commonly found in Case Construction equipment.

Manufactured to CNH’s strict quality standards, the cassette seal offers significantly longer service life compared to conventional radial seals. It helps prevent premature bearing failure, oil leakage and ingress of dust, mud and moisture, thereby reducing downtime and maintenance costs.

Key Benefits

• Genuine Case Construction / CNH OEM part
• Advanced cassette seal technology for enhanced durability
• Excellent resistance to dust, dirt, water and oil leakage
• Suitable for heavy-duty, high-load applications
• Maintains consistent sealing even under shaft movement and vibration
• Direct replacement with OEM-correct dimensions and fitment

Technical Specifications

• Part Number: 87349641
• Seal Type: Cassette Radial Shaft Seal
• Inner Diameter (ID): 150 mm
• Outer Diameter (OD): 180 mm

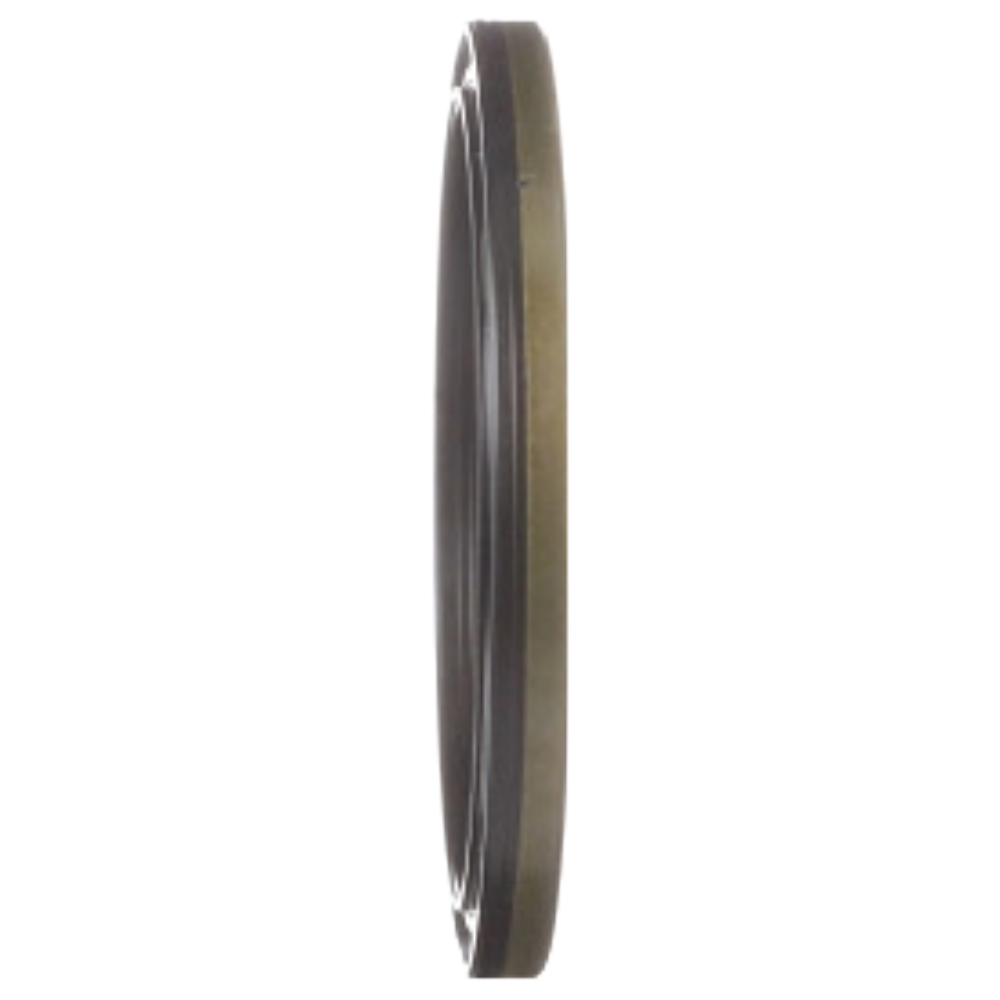

• Thickness: 14.5 mm / 16 mm (stepped design)

Replaces / Obsolete CNH Part Numbers

This part supersedes and replaces the following older CNH / Case Construction part numbers:

• 247546A1
• 367233A1
• 452140A1
• 47702
• 6914440
• 84569119
• 85821288
• 85825035
• 87313744
• 87415728
• D143084

Applications

Used in various Case Construction machines, including drivetrain, axle, transmission and hub assemblies where high-reliability shaft sealing is critical. Commonly found in backhoe loaders, wheel loaders and heavy construction equipment.
