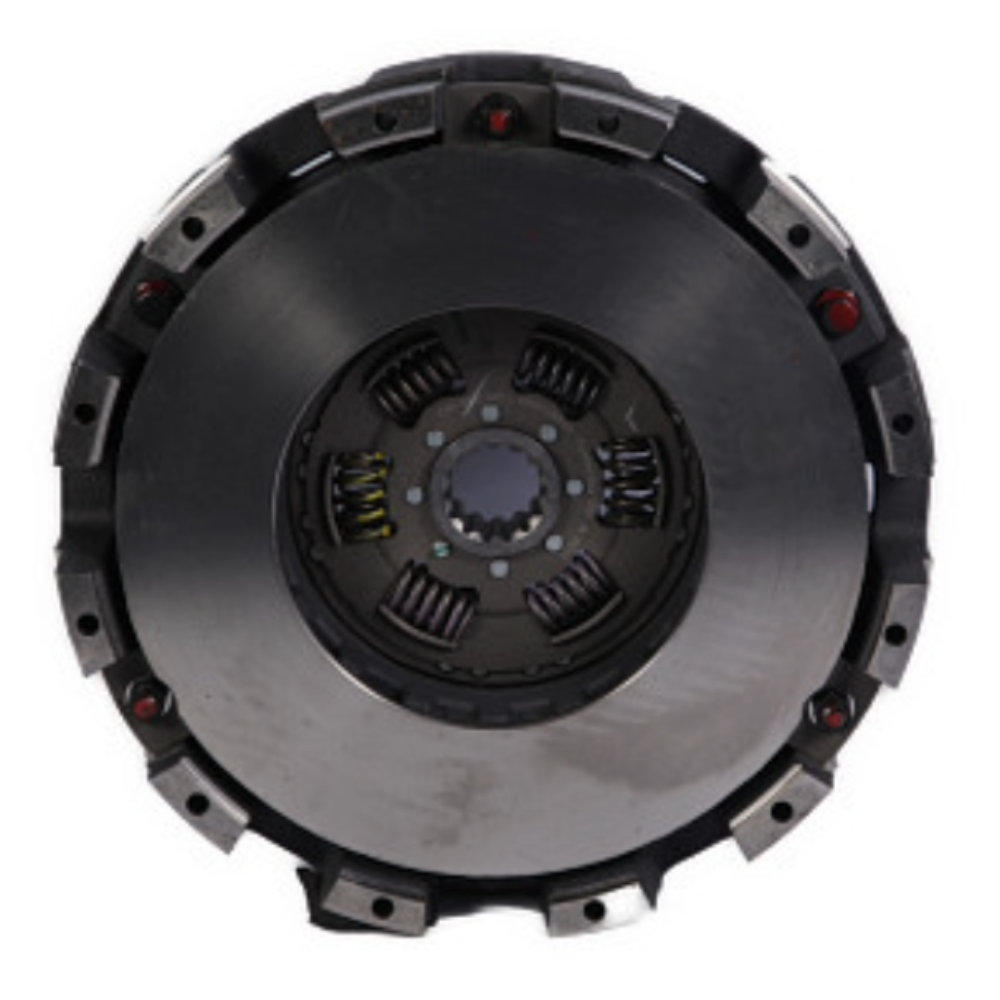

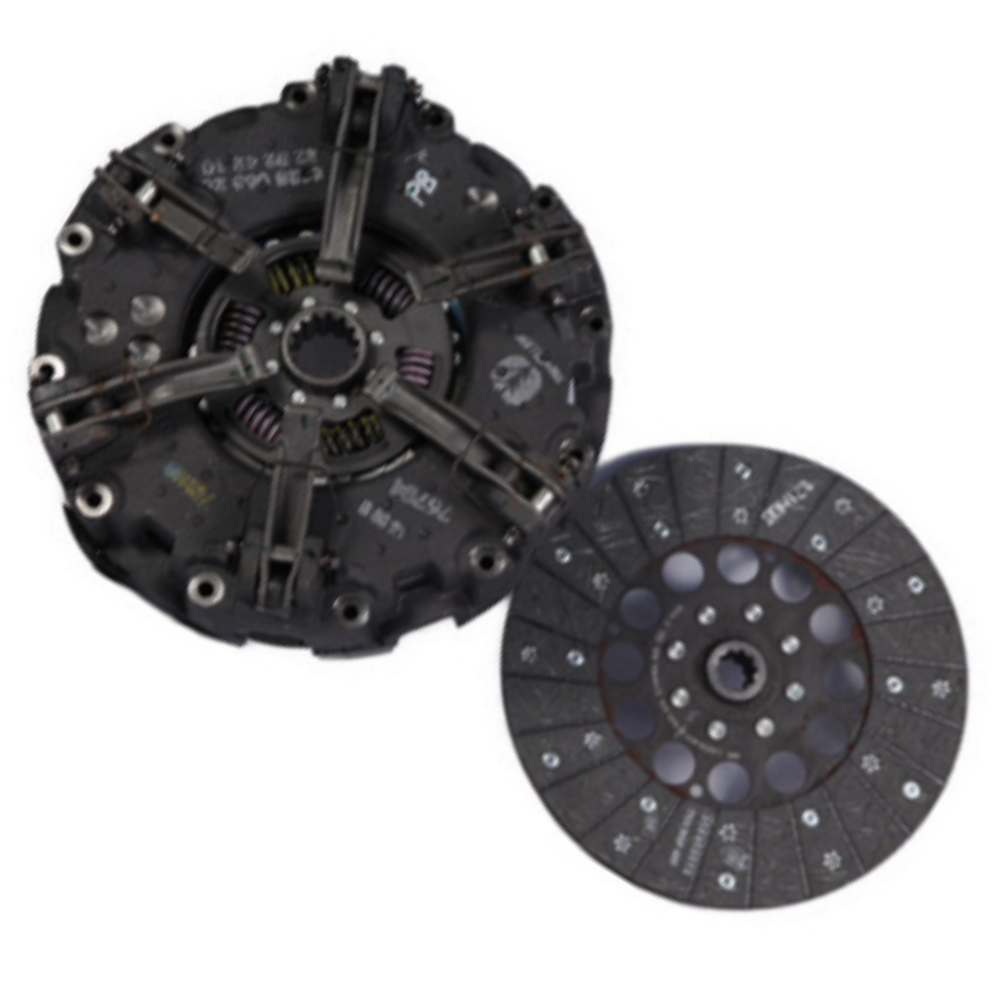

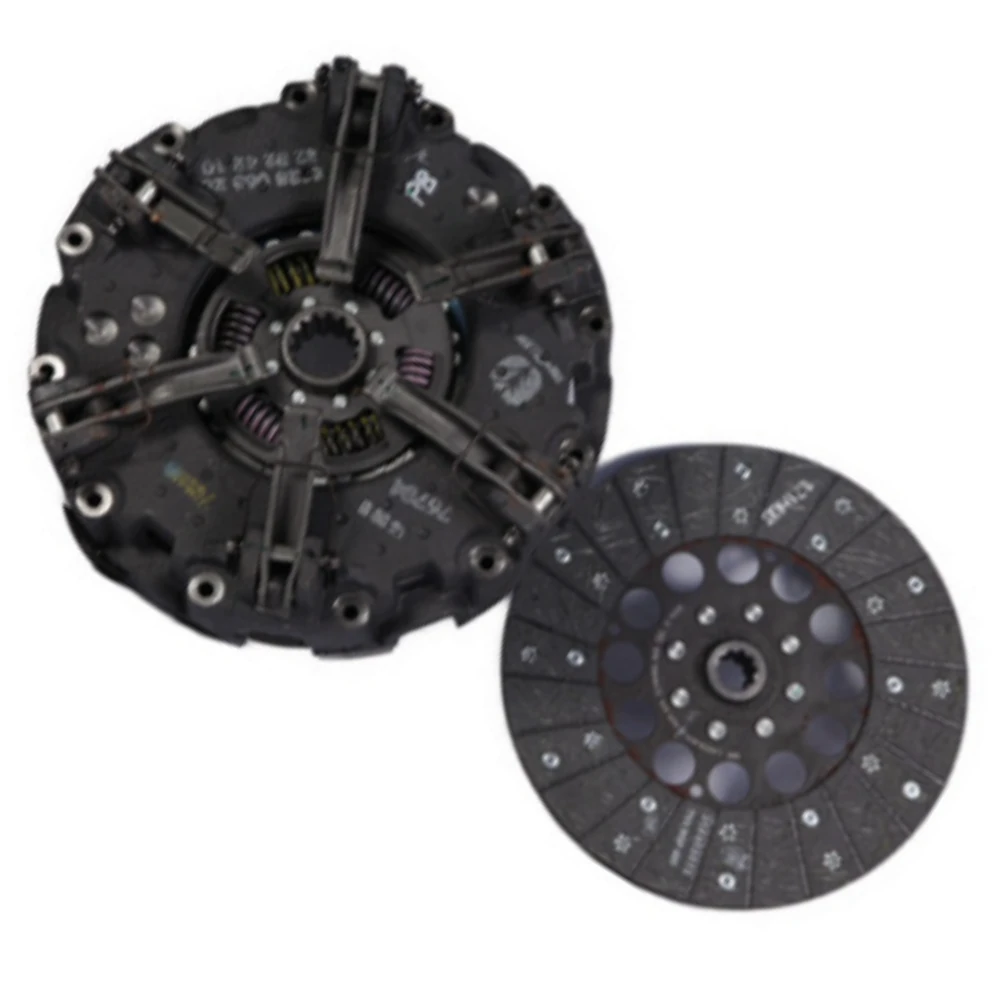

CNH Genuine 82824210 Heavy Duty Clutch & Driven Assembly “ 70 HP “ 4-Pad Clutch Disc with PTO Disc (335 mm OD, 14 Spline)

The CNH Genuine 82824210 Heavy Duty Clutch and Driven Assembly is a factory-approved drivetrain solution engineered for 70 HP tractor applications. This assembly includes a 4-pad main clutch disc and a PTO clutch disc, ensuring efficient power transfer from the engine to both the transmission and PTO system.

Designed with a 335 mm outer diameter and 14-spline inner hub, this clutch assembly provides high torque handling, smooth engagement and excellent resistance to heat and wear. The 4-pad friction design improves grip under load while maintaining controlled engagement, making it ideal for agricultural operations involving frequent gear changes, PTO usage and heavy implements.

Manufactured to CNH’s stringent OEM standards, this clutch assembly delivers long service life, reduced slippage and dependable performance even under continuous field operation. It is widely used in New Holland TT75, TT55 and several other compatible New Holland and Case IH tractors.

Parts Included:

• 84186312 Housing Clutch Cover: 1
• IND82824211 Clutch Plate: 1
• 84186319 Pressure Plate Main: 1
• 9919443 Roll Pin: 1
• 84186328 Fulcrum Ring: 1
• 84186341 Clutch Main Repair Kit: 3
• 84186330 Diaphragm Spring: 1
• 84186333 Pressure Plate PTO: 1
• 84186337 Clutch PTO Repair Kit: 3
• IND82824214 Clutch PTO Plate: 1

Precision Engineering: Crafted with precision, the dual-clutch assembly is a testament to CNH's commitment to quality. The 82824210 model is designed to meet and exceed the agricultural industry's demanding standards.

Versatile Functionality: The dual clutch assembly not only delivers exceptional performance but also provides versatility with its PTO Plate configuration. Whether you're engaged in heavy-duty field work or require power take-off functionality, this assembly has you covered.

Reliable Source: SafeSparesOnline is your reliable source for CNH Genuine parts. Rest assured that the 82824210 Dual Clutch Assembly is an authentic component that guarantees durability and longevity, meeting the high standards set by New Holland and CASE IH.

Obsolete Part Nos : 82834973 and 47577962.

Key Features & Benefits

• Genuine CNH OEM clutch assembly
• Part Number: 82824210
• Rated for 70 HP tractor applications
• Includes 4-pad main clutch disc
• Includes PTO clutch disc
• Outer Diameter: 335 mm
• Inner Hub: 14 spline
• Heavy-duty friction material for high torque capacity
• Smooth engagement and reduced vibration
• Excellent heat and wear resistance
• Direct-fit replacement – no modification required

Applications

Used in New Holland and Case IH tractors, including:

• New Holland TT75
• New Holland TT55
• Other compatible CNH tractor models with 70 HP rating, 335 mm clutch size and 14-spline hub

(Always verify application by model and transmission specification.)

Why Choose Genuine CNH Clutch Assemblies?

• Maintains factory drivetrain performance
• Ensures correct PTO and transmission synchronization
• Reduces clutch slippage and premature wear
• Protects gearbox and PTO components
• Longer service life compared to non-OEM alternatives

Order Today: Don't compromise on the performance of your tractors. Order the CNH Genuine 82824210 Dual Clutch Assembly from SafeSparesOnline today and experience the difference that quality makes in your agricultural machinery.
